- 10 kg payload with 600 mm reach Four-axis SCARA configuration sized for handling, sorting, assembly, and gluing tasks within a 600 mm working radius.
- Dual-support structure Delivers larger load capacity, high rigidity, and low vibration for stable, precise motion at speed.
- High repeatability Rated at ±0.02 mm on J1 and J2, ±0.01 mm on J3, and ±0.01° on J4 for consistent precision in production tasks.
- Modular, low-maintenance design The modular SA10A architecture adapts to more automation scenarios while reducing maintenance costs.
- New-generation S series controller Pairs with SIASUN's S series control cabinet, supports multiple programming and teaching methods, and offers abundant user cables for expandability.
- Compact and easy to deploy A lightweight body and lower overall height simplify installation and reduce space constraints on the production line.
Beschrijving

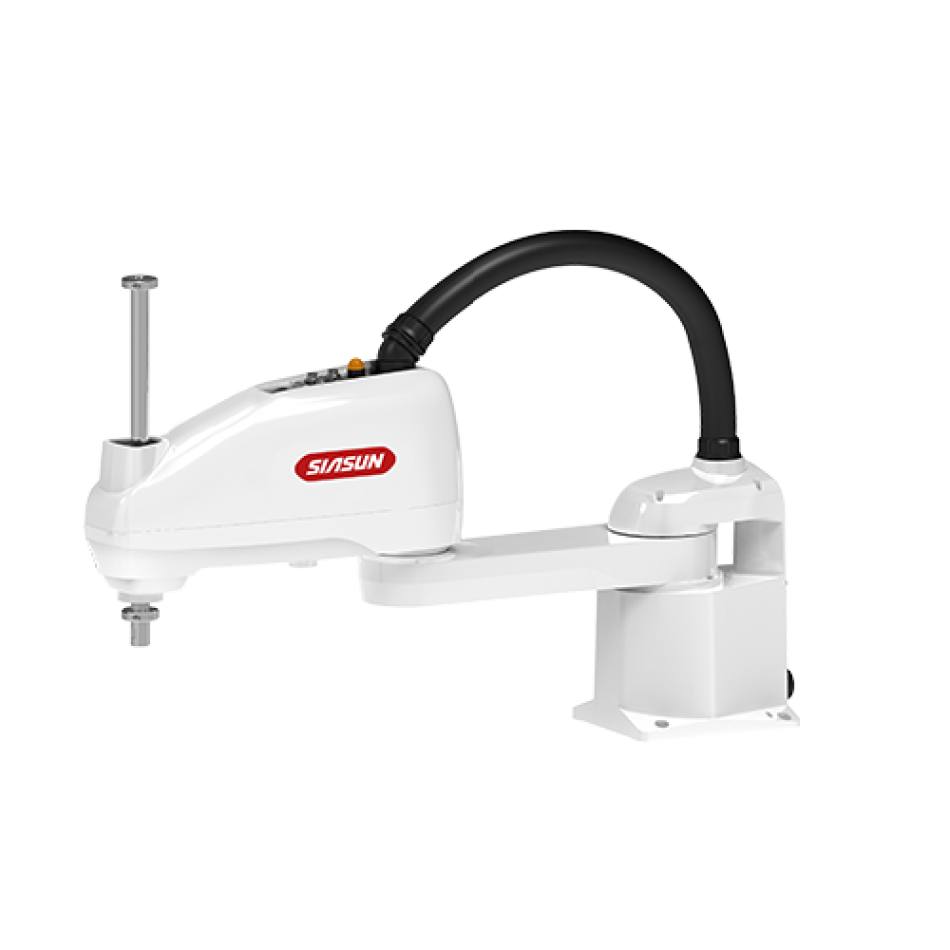

The SIASUN SA10A-10/0.60 is a four-axis SCARA robot from SIASUN's new-generation SA10A series, combining a 10 kg payload with a 600 mm reach. Built around all-new proprietary core components and a dual-support structure, it delivers enhanced load capacity, higher precision, faster speed, greater rigidity, and reduced vibration. Repeatability is rated at ±0.02 mm on joints J1 and J2, ±0.01 mm on J3, and ±0.01° on J4, giving the arm the consistency required for precision production work, while the series' modular design covers more automation scenarios and reduces maintenance costs over the robot's service life.
In production, the SA10A-10/0.60 takes on the core SCARA duties of handling, sorting, assembly, and gluing, with primary applications across 3C electronics, lithium battery, photovoltaic, and automotive electronics manufacturing. The arm pairs with SIASUN's new-generation S series control cabinet, supports multiple programming and teaching methods, and provides abundant user cables for expandability. A lightweight, compact body with a lower overall height makes deployment straightforward and reduces space constraints on crowded production lines. The robot carries an IP20 protection rating and is supplied on a quotation basis.
Kenmerken
Specificaties
| Brand | SIASUN |
|---|---|
| Model | SA10A-10/0.60 |
| Type | SCARA robot |
| Payload | 10 kg |
| Reach | 600 mm |
| Degrees of Freedom | 4 |
| Repeatability | J1+J2 ±0.02 mm, J3 ±0.01 mm, J4 ±0.01° |
| Protection Rating | IP20 |
| Controller | New-generation S series control cabinet |
Sectoren
Veelgestelde vragen
It is a four-axis SCARA robot from SIASUN's new-generation SA10A series, offering a 10 kg payload and 600 mm reach. All-new proprietary core components and a dual-support structure give it enhanced load capacity, higher precision, faster speed, greater rigidity, and reduced vibration.
Its core application areas are handling, sorting, assembly, and gluing, with primary industries including 3C electronics, lithium battery, photovoltaic, and automotive electronics manufacturing.
Both are four-axis SCARA robots from the same SA10A series with a 10 kg payload and identical repeatability ratings. The difference is reach: the SA10A-10/0.60 covers a 600 mm radius while the SA10A-10/0.70 extends to 700 mm, so the choice comes down to the working envelope your cell requires.
The SA10A-10/0.60 works with SIASUN's new-generation S series control cabinet and supports multiple programming and teaching methods, with abundant user cables on the main unit for expandability.
The robot is available through Robotix Market on a request-for-quote basis: contact our team and we will confirm pricing, configuration, and availability for your project. It is covered by the manufacturer's warranty from SIASUN, and we ship worldwide.
