- Drag teaching and graphical programming Operators can hand-guide the arm through weld paths or build jobs in a graphical interface, with no specialist robot programming required.
- Standard welding process package Ships with support for spot, corner, oscillation, reciprocating, cladding, and multi-layer multi-pass welding out of the box.
- ±0.02 mm repeatability High positioning precision ensures consistent, high-quality weld seam output across repeated production runs.
- Precise vision integration Integrated vision capability enables a variety of guidance and inspection functions alongside the core welding tasks.
- Plug-and-play welder compatibility Rich communication interfaces are compatible with mainstream welding machine brands, simplifying integration into existing welding setups.
- Optional external axis expansion An optional external axis plugin package expands the robot to additional welding applications and customized welding workstations.
Beschrijving

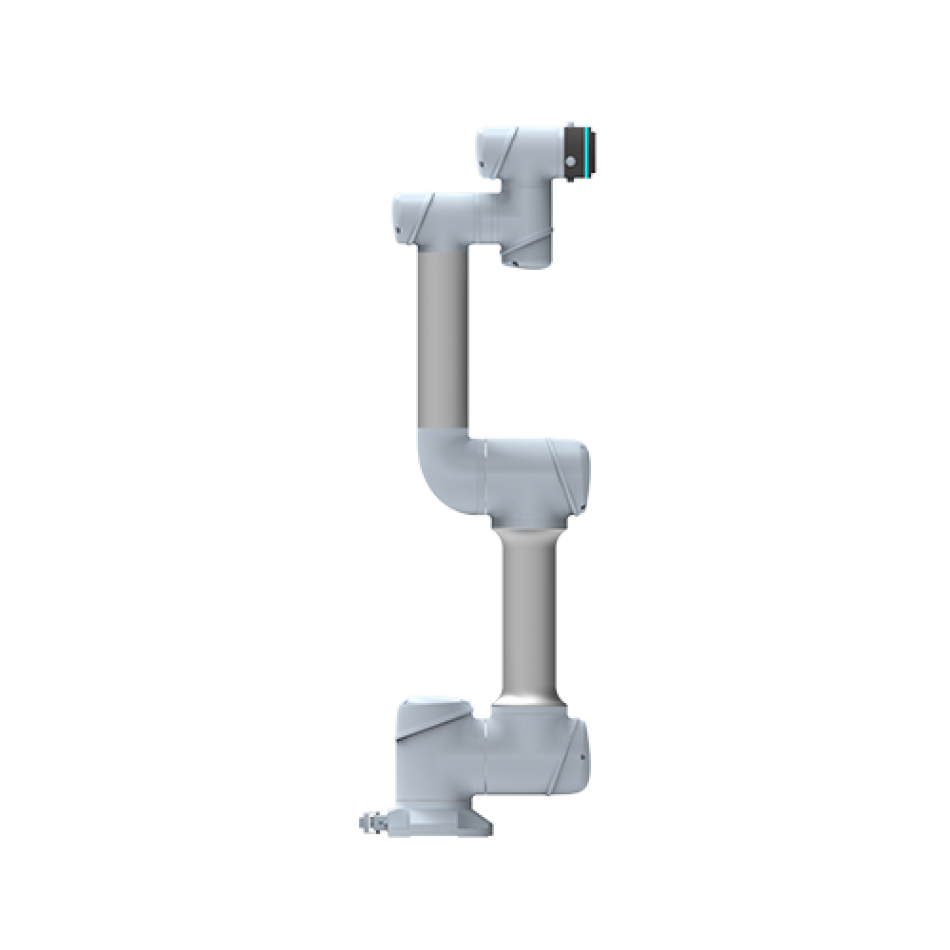

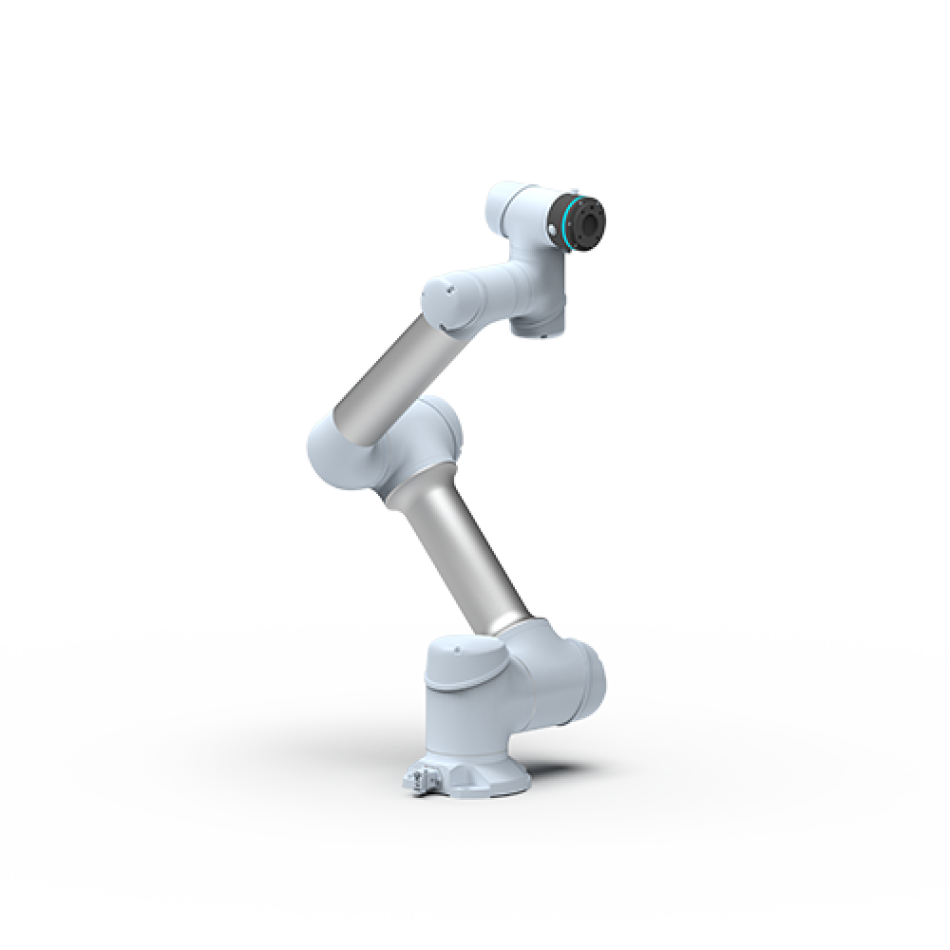

The SIASUN GCR5-910-W is a six-axis collaborative welding robot from the DUCO line, built to bring automated welding to workshops without specialist robot programmers. Its two core interaction methods — graphical programming and hand-guided drag teaching — let operators set up jobs quickly, and a welding process package is included as standard, covering spot welding, corner welding, oscillation welding, reciprocating welding, cladding, and multi-layer multi-pass welding. With a 5 kg payload, 917 mm reach, and ±0.02 mm repeatability, the arm produces consistent, high-quality weld seams, while precise vision integration adds further guidance and inspection functions.
The GCR5-910-W suits fabrication shops and production cells running repeatable weld work in metal manufacturing. A broad set of communication interfaces makes it compatible with mainstream welding machine brands for plug-and-play integration, and comprehensive development interfaces support building complete welding workstations around the arm. An optional external axis plugin package extends the robot to additional welding applications and customized workstation layouts. Rated at IP54/IP65 with a maximum TCP speed of 3.6 m/s, it is documented by SIASUN in applications such as welding and gluing of automotive body parts and container welding.
Kenmerken
Specificaties
| Brand | SIASUN |
|---|---|
| Model | GCR5-910-W |
| Type | DUCO collaborative welding robot |
| Max Payload | 5kg |
| Reach | 917mm |
| Repeatability | ±0.02mm |
| Max TCP Speed | 3.6m/s |
| IP Class | IP54/IP65 |
| Degrees of Freedom | 6 |
| Programming | Graphical interaction, drag teaching |
| Welding Processes | Spot, corner, oscillation, reciprocating, cladding, multi-layer multi-pass |
| Application Area | Welding |
Sectoren
Veelgestelde vragen
The GCR5-910-W is a collaborative welding robot used to automate spot, corner, oscillation, reciprocating, cladding, and multi-layer multi-pass welding in fabrication and manufacturing environments. SIASUN documents it in applications such as welding and gluing of automotive body parts and container welding.
It offers two core interaction methods: graphical programming and drag teaching, where an operator physically guides the arm through the weld path. The standard welding process package lets users start welding tasks quickly, and an optional external axis plugin package adds support for further applications and custom welding workstations.
The robot provides a wide range of communication interfaces compatible with mainstream welding machine brands, enabling plug-and-play integration, and comprehensive development interfaces make it straightforward to build complete welding workstations around it.
The V-Series is a conventional industrial robot arm for general automation tasks, while the GCR5-910-W is a collaborative robot specialised for welding — it adds drag teaching, a standard welding process package, and welder-brand communication interfaces in a 5 kg payload, 917 mm reach cobot format.
Pricing is available on request — contact Robotix Market via the quote or inquiry form for pricing, availability, and shipping details. The robot is covered by SIASUN's manufacturer warranty, and Robotix Market ships worldwide.
