- Double-layer roller architecture Two-deck roller system doubles throughput vs. single-layer variants, supporting upstream and downstream transfers in one mission to reduce fleet congestion.
- 160 kg total double-layer capacity 80 kg per layer for a combined 160 kg total payload, enabling high-volume tote and carton handling in logistics and manufacturing lines.
- ±10 mm docking accuracy Precise docking to ±10 mm and ±1° angular tolerance ensures reliable roller-to-roller transfers at automated stations without jams or manual correction.
- Adjustable conveyor geometry Transfer length up to 650 mm, width 120–540 mm, and height 305–1100 mm accommodate diverse station types across packing, inspection, and conveyor endpoints.
- VSLAM + LiDAR SLAM navigation Marker-free navigation with ISO 3691-4 aligned safety supports route changes as warehouse and factory layouts evolve without floor modification.
- 8-hour runtime at full load Eight-hour full-load runtime with a 2-hour charge cycle to 90% supports multi-shift operations with manageable downtime.
Beschrijving

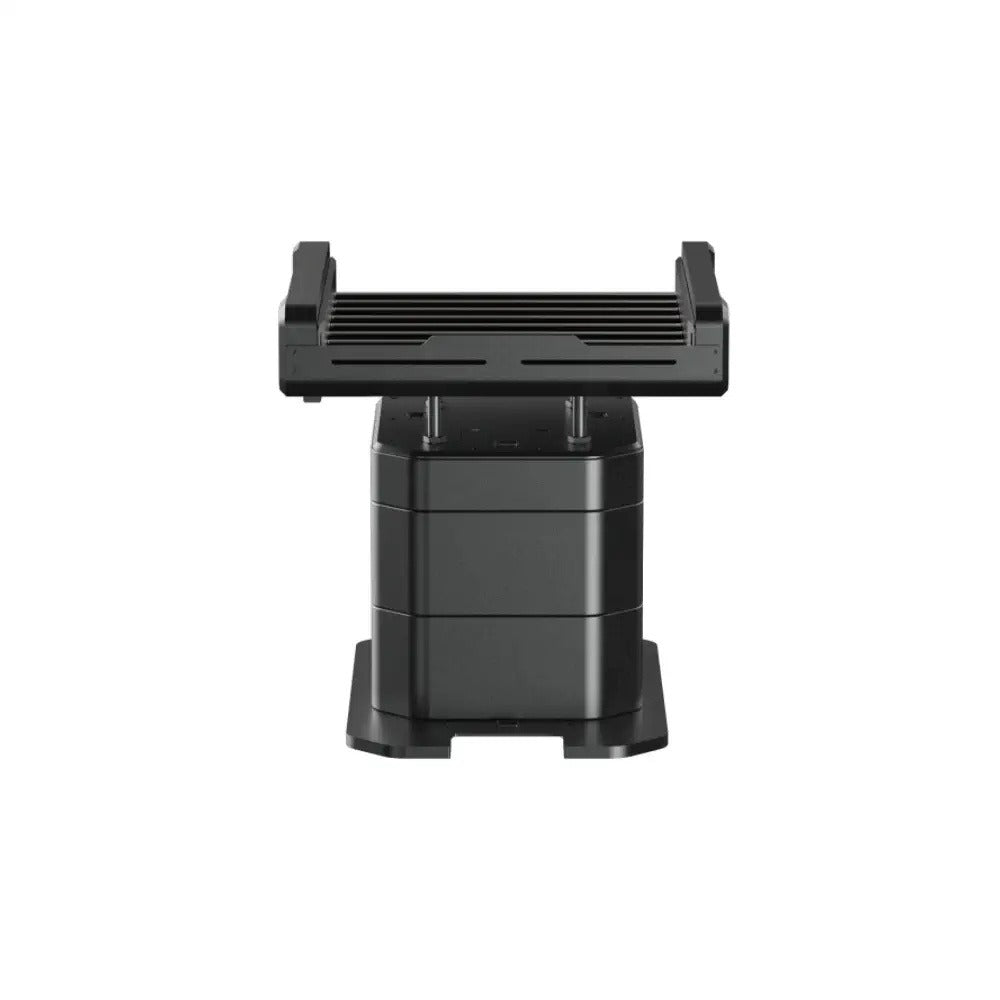

The Pudu T300 Conveyor-D is the double-layer conveyor configuration of Pudu's T300 industrial autonomous mobile robot, designed to integrate with fixed conveyor lines and automated material-handling stations in factories and warehouses. The double-layer roller architecture increases throughput compared with single-layer variants by carrying more totes, cartons, or trays per mission and supporting upstream-plus-downstream transfer patterns in a single run — for example, delivering full totes while simultaneously collecting empties. Docking accuracy of ±10 mm and ±1° angular tolerance ensures reliable roller-to-roller transfers without jams or misalignment. The conveyor geometry is adjustable: transfer length up to 650 mm, conveyor width from 120 mm to 540 mm, and working surface height from 305 mm to 1100 mm, accommodating diverse station standards across packing, inspection, and conveyor endpoint positions.
Each layer of the Conveyor-D carries 80 kg for a total double-layer capacity of 160 kg, with a maximum speed of 1.2 m/s and a runtime of 8 hours at full load or 10 hours unloaded, supported by a 2-hour charge time to 90%. The robot weighs 180 kg and fits through a 75 cm passage width. Navigation uses VSLAM and LiDAR SLAM for marker-free routing that adapts to reconfigured factory layouts, and the platform's safety design is aligned with ISO 3691-4. Self-powered rollers automate the transfer handoff without requiring manual lifting at stations.
Kenmerken
Specificaties
| Brand | Pudu Robotics |
|---|---|
| Model | T300 Conveyor-D |
| Configuration | Double-layer conveyor |
| Capacity per Layer | 80 kg |
| Total Double-Layer Capacity | 160 kg |
| Max Speed | 1.2 m/s |
| Runtime (Full Load) | 8 hours |
| Runtime (No Load) | 10 hours |
| Charge Time (0–90%) | 2 hours |
| Robot Weight | 180 kg |
| Passage Width | 75 cm |
| Docking Accuracy | ±10 mm, ±1° |
| Transfer Length | Up to 650 mm |
| Conveyor Width | 120–540 mm (adjustable) |
| Working Height | 305–1100 mm (adjustable) |
| Navigation | VSLAM + LiDAR SLAM |
| Safety Standard | ISO 3691-4 aligned |
Sectoren
Veelgestelde vragen
The Pudu T300 Conveyor-D is a double-layer conveyor autonomous mobile robot designed to integrate with automated conveyor lines and material-handling stations in factories and warehouses, transporting totes, cartons, and trays with self-powered roller transfers for high-throughput operations.
The double-layer roller architecture with ±10 mm docking accuracy and adjustable geometry (height 305–1100 mm, width 120–540 mm) allows the T300 Conveyor-D to perform automated roller-to-roller transfers at diverse station types, carrying 160 kg total at up to 1.2 m/s with an 8-hour full-load runtime.
The T300 Conveyor-D is suited to high-volume warehouse and logistics operations, automated manufacturing lines, and distribution centers where reliable AMR integration with conveyor infrastructure and high per-mission throughput are essential.
Yes, Robotix Market ships the Pudu T300 Conveyor-D worldwide. The product is covered by the manufacturer's warranty as provided by Pudu Robotics.
You can request a quote through Robotix Market by submitting an inquiry via our website. Our team will provide pricing, fleet sizing, station compatibility details, and shipping timelines for your project.
