- 7 kg payload with 906 mm reach Six-axis arm that pairs a 7 kg payload with a 906 mm working reach, covering mid-size tasks from a compact footprint.
- ±0.02 mm repeatability High-precision global error compensation delivers repeat positioning accuracy of up to ±0.02 mm for consistent, high-quality output.
- Industry-leading motion speed A variable acceleration algorithm fully exploits the mechanical performance limits, meeting demands for both quality and short production cycle times.
- IP67-rated wrist High wrist protection ensures long-term stable and reliable operation even in harsh industrial environments.
- Internal cabling, streamlined body Cables run inside the compact structure, giving a clean modern exterior that integrates easily into small automation units.
- Modular, easy deployment The modular design enables easier and more compact integration into new or existing production lines.
Descrizione
The SIASUN SN7B-7/0.90 is a compact six-axis industrial robot with internal cabling and a streamlined, modern exterior, built to slot easily into small automation units. It handles a 7 kg payload across a 906 mm reach and combines excellent stability with industry-leading motion speed, so it can satisfy demands on both part quality and production cycle time. A variable acceleration algorithm extracts the full mechanical performance of the arm, high-precision global error compensation brings repeat positioning accuracy up to ±0.02 mm, and the IP67-rated wrist keeps operation stable and reliable over the long term, even in harsh environments.
SIASUN targets the SN7B-7/0.90 at welding, handling, assembly, and loading and unloading duties. Its modular design makes application integration easier and more compact, and the internally routed cabling keeps the workspace clear in tight cells. The platform family is proven across SIASUN case deployments including automotive welding assembly lines, LCD TV manufacturing solutions, automated carton palletizing, flexible welding workstations, and intelligent welding systems for ships and engineering machinery.
Caratteristiche
Specifiche
| Brand | SIASUN |
|---|---|
| Model | SN7B-7/0.90 |
| Payload | 7 kg |
| Reach | 906 mm |
| Degrees of Freedom | 6 |
| Repeatability | ±0.02 mm |
| Protection (Wrist) | IP67 |
| Cabling | Internal routing |
Settori industriali
Domande frequenti
It is a compact six-axis industrial robot from SIASUN featuring internal cabling and a streamlined, modern design, with a 7 kg payload, 906 mm reach, repeatability of up to ±0.02 mm, and an IP67-rated wrist.
SIASUN positions it for welding, handling, assembly, and loading and unloading. Its compact structure and internal cabling make it especially easy to integrate into small automation units where both quality and cycle time matter.
The V-Series is a separate SIASUN industrial robot family, while this listing covers the SN7B-7/0.90 specifically — a compact model with a 7 kg payload, 906 mm reach, and ±0.02 mm repeatability. Our team can help you choose between SIASUN families based on your payload, reach, and integration requirements.
The robot is covered by the manufacturer's warranty as provided by SIASUN. Robotix Market ships worldwide, and the exact warranty terms for your region are confirmed with your quotation.
Pricing is available on a quotation basis. Submit a quote request or inquiry through Robotix Market and our team will provide current pricing, availability, and shipping details for your location.

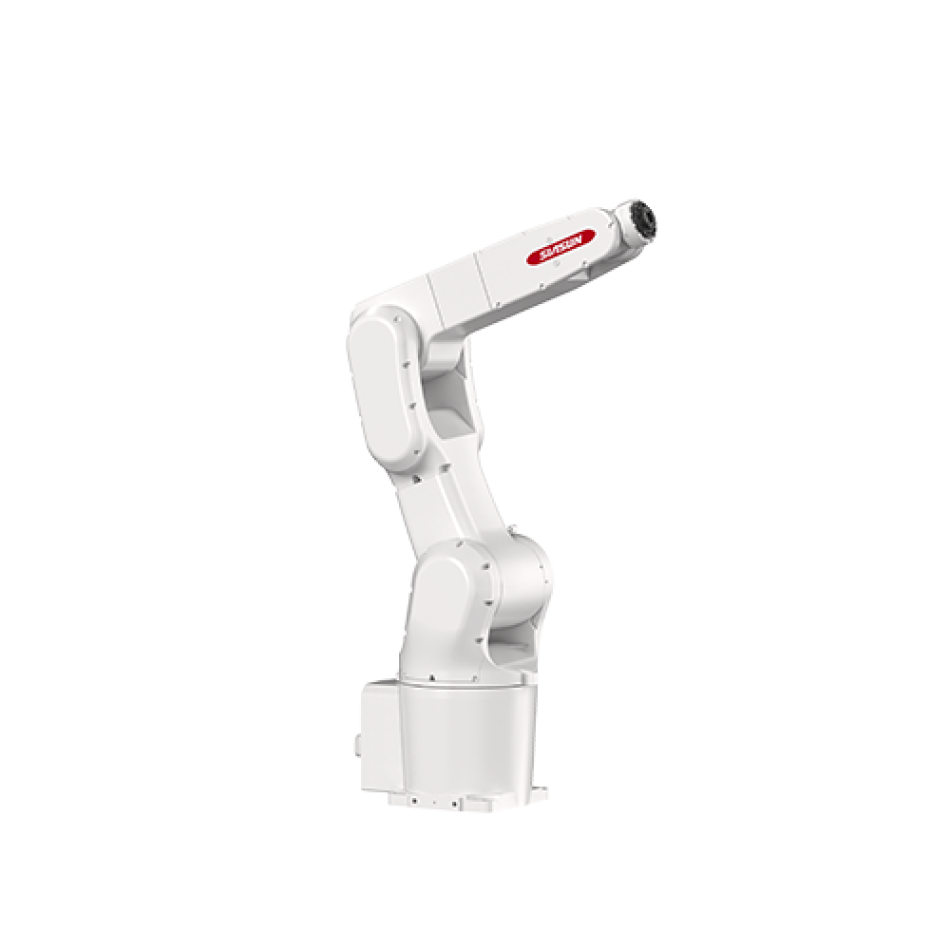

SIASUN SN7B-7/0.90 Compact Industrial Robot
