- 12 kg payload with 907 mm reach Six-axis desktop-class arm that handles a 12 kg payload across a 907 mm working reach, covering a wide envelope from a compact base.
- ±0.03 mm repeatability Newly developed proprietary core components and algorithms exploit the mechanical performance limits of the arm to deliver repeat positioning accuracy of ±0.03 mm.
- IP67-rated wrist High protection at the wrist allows the robot to work reliably in harsh and demanding industrial environments.
- Built-in air lines and signal cables The robot body comes standard with multiple air passages and signal lines to support diverse end-effector and gripper requirements without external cabling.
- Broad fieldbus compatibility Supports TCP/IP, Modbus TCP, EIP, and Profinet protocols for straightforward integration with factory networks and peripheral equipment.
- Modular, low-maintenance design The modular structure accommodates a wider range of application scenarios while reducing maintenance costs and simplifying deployment.
Descripción

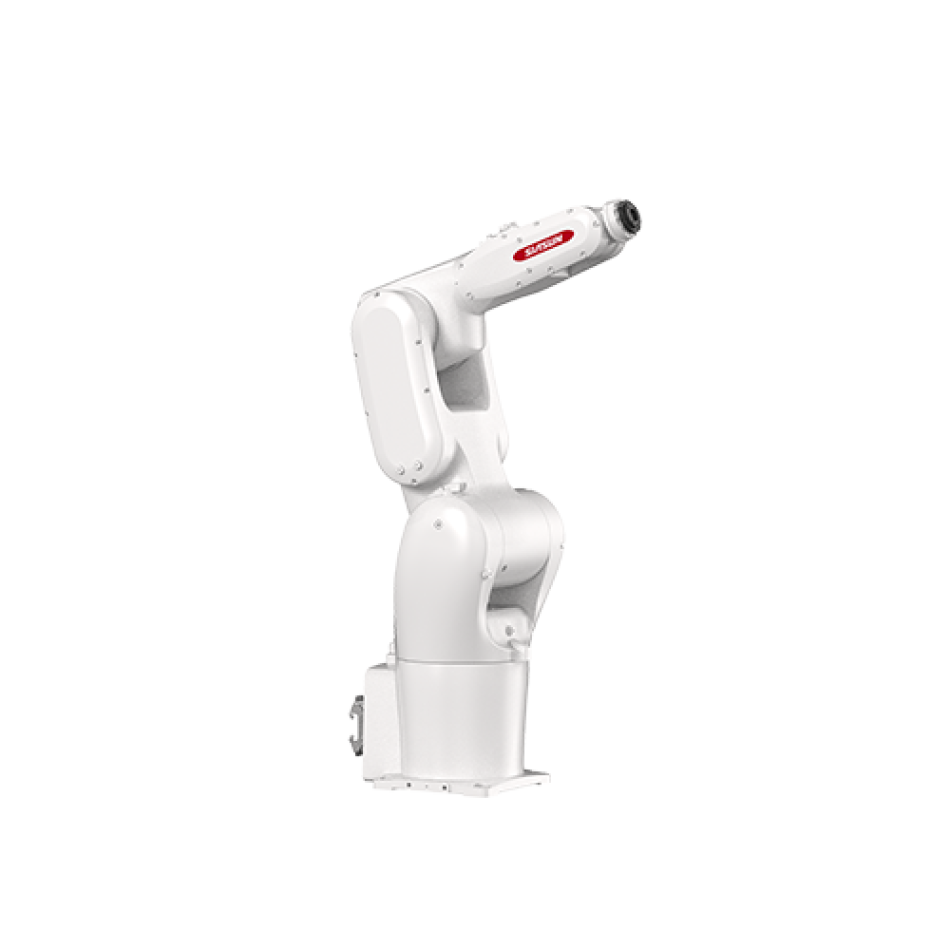

The SIASUN SN10A-12/0.90 is a six-axis industrial robot from the SN10A series, SIASUN's new generation of desktop-class machines built for high performance, easy maintenance, and a compact structure. Around newly developed proprietary core components and motion algorithms, the robot extracts the full mechanical performance of its frame, delivering high speed, high rigidity, and a repeatability of ±0.03 mm, with an IP67-rated wrist for protection in demanding conditions. It carries a 12 kg payload across a 907 mm reach, and the body ships as standard with multiple air lines and signal cables, so end effectors and grippers can be fitted without external routing. The controller is compatible with common fieldbus protocols including TCP/IP, Modbus TCP, EIP, and Profinet, simplifying connection to existing plant networks.
The SN10A-12/0.90 is aimed at handling, welding, assembly, machine loading and unloading, inspection, and grinding and polishing tasks. Its modular design accommodates a wide range of application scenarios while keeping maintenance costs down, and the compact desktop format makes it practical where floor space is limited. SIASUN's documented deployments for the platform family span automotive welding assembly lines, LCD TV manufacturing, automated carton palletizing, flexible welding workstations, and intelligent welding systems for ships and engineering machinery, reflecting the breadth of production environments the series is designed to serve.
Características
Especificaciones
| Brand | SIASUN |
|---|---|
| Model | SN10A-12/0.90 |
| Series | SN10A |
| Payload | 12 kg |
| Reach | 907 mm |
| Degrees of Freedom | 6 |
| Repeatability | ±0.03 mm |
| Protection (Wrist) | IP67 |
| Fieldbus Compatibility | TCP/IP, Modbus TCP, EIP, Profinet |
| End-Effector Support | Multiple air lines and signal cables as standard |
Sectores
Preguntas frecuentes
It is a six-axis industrial robot from SIASUN's SN10A desktop-class series, offering a 12 kg payload, 907 mm reach, ±0.03 mm repeatability, and an IP67-rated wrist in a compact, modular package designed for high speed and easy maintenance.
SIASUN positions the robot for handling, welding, assembly, machine loading and unloading, inspection, and grinding and polishing. Its compact desktop format and built-in air and signal lines make it well suited to space-limited production cells.
The V-Series is a separate SIASUN industrial robot family, while this listing covers the specific SN10A-12/0.90 desktop-class model with its 12 kg payload, 907 mm reach, and ±0.03 mm repeatability. If you are unsure which SIASUN family fits your cell, our team can advise based on your payload, reach, and application requirements.
The robot is covered by the manufacturer's warranty as provided by SIASUN. Robotix Market ships worldwide, and full warranty terms for your region are confirmed with your quotation.
Pricing is provided on a quotation basis. Submit a quote request or inquiry through Robotix Market and our team will respond with current pricing, availability, and shipping details for your location.
